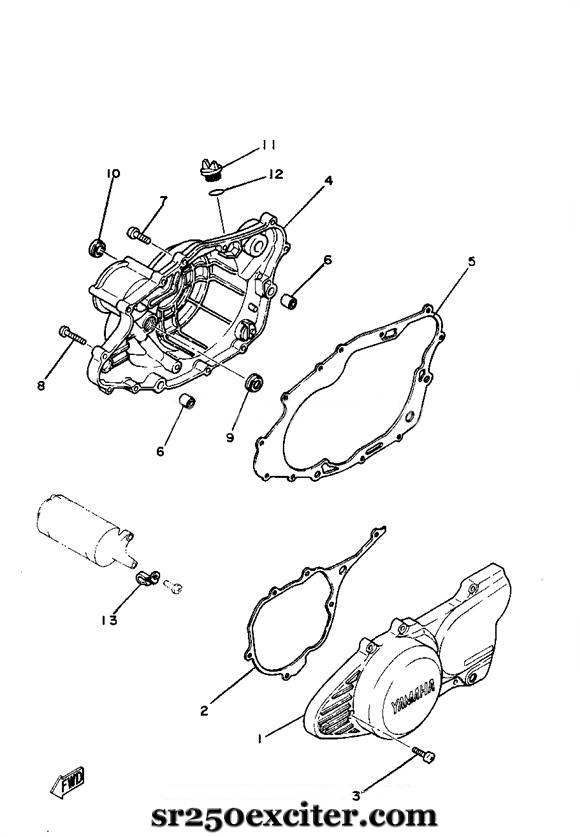

Crankcase Cover
| Crankcase Cover | ||||
|---|---|---|---|---|
| Tag # | Description | Yamaha Part # | Qty Required | Notes |
| Crankcase Cover | ||||
| 1 | Cover, Crankcase 1 | 3Y6-15411-01-00 | 1 | |
| 2 | Gasket, Crankcase Cover | 3Y6-15451-00-00 | 1 | |
| 3 | Screw, Pan Head | 92501-06025-00 | 7 | |
| 4 | Cover, Crankcase 2 | 3Y6-15421-00-00 | 1 | |
| 5 | Gasket, Crankcase Cover 2 | 3Y6-15461-00-00 | 1 | |
| 6 | Pin, Dowel | 91830-22016-00 | 1 | |
| 7 | Screw, Pan Head | 92501-06025-00 | 9 | |
| 8 | Screw, Pan Head | 92501-06035-00 | 2 | |
| 9 | Oil Seal | 93101-14092-00 | 1 | |
| 10 | Gauge, Level | 3Y6-15361-00-00 | 1 | |
| 11 | Plug, Oil | 3Y1-15363-00-00 | 1 | |
| 12 | O-Ring | 93210-19123-00 | 1 | |
| 13 | Clamp | 90465-08127-00 | 1 | |
