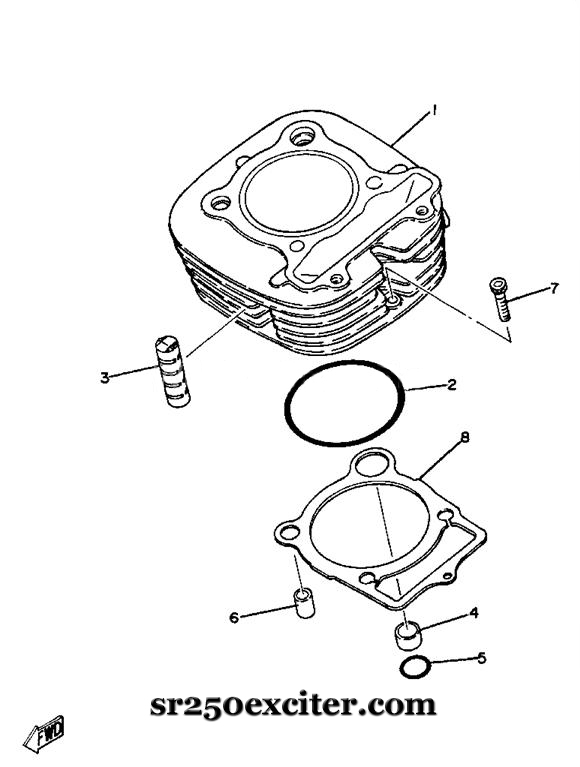

Cylinder
| Cylinder | ||||
|---|---|---|---|---|
| Tag # | Description | Yamaha Part # | Qty Required | Notes |
| Cylinder | ||||
| 1 | Cylinder | 3Y1-11310-00-00 | 1 | |
| 2 | O-Ring | 93210-81411-00 | 1 | |
| 3 | Absorber 2 | 3Y1-11162-00-00 | 4 | |
| 4 | Collar | 90387-16547-00 | 1 | |
| 5 | O-Ring | 93210-18322-00 | 1 | |
| 6 | Pin, Dowel | 91830-24016-00 | 1 | |
| 7 | Bolt | 91316-06030-00 | 1 | |
| 8 | Gasket, Cylinder | 3Y1-11351-01-00 | 1 | (3YL-LL351-00) |
