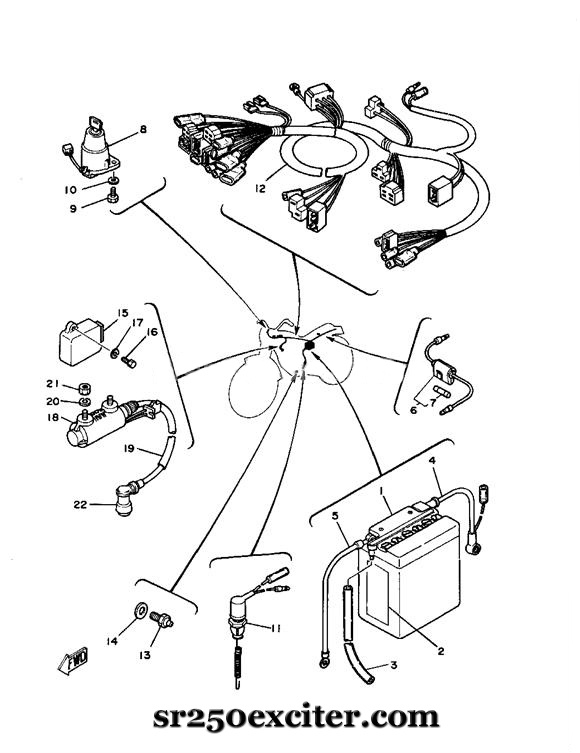

Electrical (1 of 2)
| Electrical 1 | ||||
|---|---|---|---|---|
| Tag # | Description | Yamaha Part # | Qty Required | Notes |
| Electrical 1 | ||||
| 1 | Battery Assembly | 366-82110-79-00 | 1 | 12NL2A-4A |
| 2 | Label, Battery | LIT-82141-09-00 | 1 | 118-82141-09 |
| 3 | Hose | 90445-08336-00 | 1 | |
| 4 | Wire, Plus (+) Lead | 3Y6-82115-00-00 | 1 | |
| 5 | Wire, Minus (-) Lead | 3Y6-82116-00-00 | 1 | |
| 6 | Fuse Holder Assembly | 164-82150-00-00 | 1 | |
| 7 | Fuse | 1A0-82161-00-00 | 1 | |
| 8 | Main Switch Assembly | 4H7-82508-50-00 | 1 | |
| 9 | Bolt | 97301-06016-00 | 2 | |
| 10 | Washer | 92901-06600-00 | 2 | |
| 11 | Stop Switch Assembly | 2F1-82530-00-00 | 1 | |
| 12 | Wire Harness Assembly | 3Y6-82590-01-00 | 1 | |
| 13 | Neutral Switch Assembly | 2H7-82540-00-00 | 1 | |
| 14 | Gasket | 90430-10148-00 | 1 | |
| 15 | Ignitor Unit Assembly | 3Y6-82305-10-00 | 1 | |
| 16 | Bolt | 97301-06016-00 | 2 | |
| 17 | Washer, Spring | 92903-06100-00 | 2 | |
| 18 | Ignition Coil Assembly | 3Y6-82310-60-00 | 1 | |
| 19 | Cord, High Tension | 3Y6-82341-00-00 | 1 | |
| 20 | Washer, Spring | 92903-06100-00 | 2 | |
| 21 | Nut | 95302-06600-00 | 2 | |
| 22 | Plug Cap Assembly | 1L9-82370-00-00 | 1 | |
| 22 | Plug Cap Assmebly | 1J7-82370-10-00 | 1 | |
| 22 | Plug Cap Assembly with Noise Suppressor | 1J7-82370-10-00 | 1 | White Cap |
