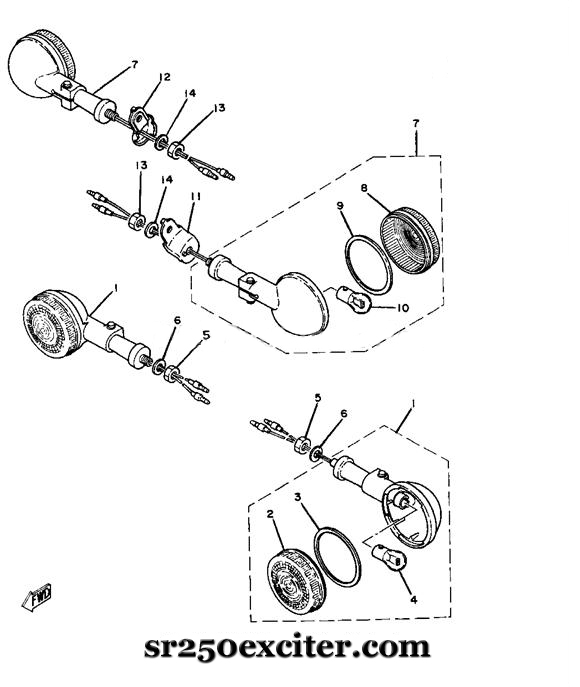

Flasher Light
| Flasher Light | ||||
|---|---|---|---|---|
| Tag # | Description | Yamaha Part # | Qty Required | Notes |
| Flasher Light | ||||
| 1 | Front Flasher Light Assembly 1 | 3Y6-83310-70-00 | 2 | |
| 2 | Lens, Flasher | 3Y6-83312-00-00 | 1 | |
| 3 | Gasket, Flasher Lens | 3Y6-83313-00-00 | 1 | |
| 4 | Bulb | 256-83311-70-00 | 1 | 12 Volt, 27 Watt |
| 5 | Nut | 95301-12600-00 | 2 | |
| 6 | Washer, Spring | 92901-12100-00 | 2 | |
| 7 | Rear Flasher Light Assembly 1 | 3Y6-83330-70-00 | 2 | |
| 8 | Lens, Flasher | 3Y6-83312-00-00 | 1 | |
| 9 | Gasket, Flasher Lens | 3Y6-83313-00-00 | 1 | |
| 10 | Bulb | 256-83311-70-00 | 1 | 12 Volt, 27 Watt |
| 11 | Stay, Flasher | 3Y6-83368-00-00 | 1 | |
| 12 | Stay, Flasher | 3Y6-83369-00-00 | 1 | |
| 13 | Nut | 95301-12600-00 | 2 | |
| 14 | Washer, Spring | 92901-12100-00 | 2 | |
