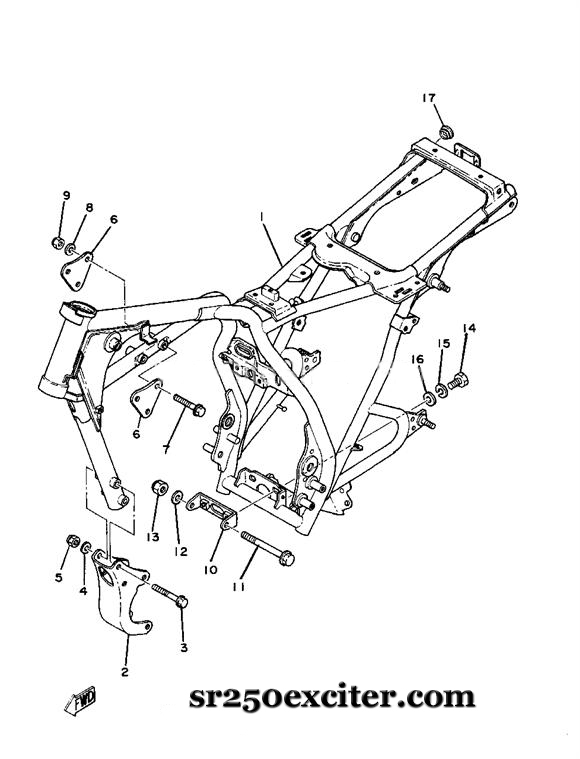

Frame
| Frame |
| Tag # |
Description |
Yamaha Part # |
Qty Required |
Notes |
| Frame |
| 1 |
Frame Comp Yamaha Black |
3Y6-21110-00-33 |
1 |
|
| 2 |
Stay, Engine 3 |
3Y6-21316-00-00 |
1 |
|
| 3 |
Bolt, Flange |
95811-08070-00 |
4 |
|
| 4 |
Washer, Plate |
90201-08366-00 |
4 |
|
| 5 |
Nut, Self locking |
90185-08089-00 |
4 |
|
| 6 |
Stay, Engine 2 |
3Y6-21315-01-00 |
2 |
|
| 7 |
Bolt, Flange |
95812-08055-00 |
3 |
|
| 8 |
Washer, Plate |
90201-08366-00 |
3 |
|
| 9 |
Nut, Self locking |
90185-08089-00 |
3 |
|
| 10 |
Plate, Engine Adjusting |
3Y1-21475-00-00 |
1 |
|
| 11 |
Bolt, Washer Based |
90105-08162-00 |
1 |
|
| 12 |
Washer, Plate |
90201-08366-00 |
1 |
|
| 13 |
Nut, Self Locking |
90185-08089-00 |
1 |
|
| 14 |
Bolt |
97321-08016-00 |
2 |
|
| 15 |
Washer, Spring |
92903-08100-00 |
2 |
|
| 16 |
Washer, Plate |
92901-08600-00 |
2 |
|
| 17 |
Grommet |
90480-17218-00 |
2 |
|
