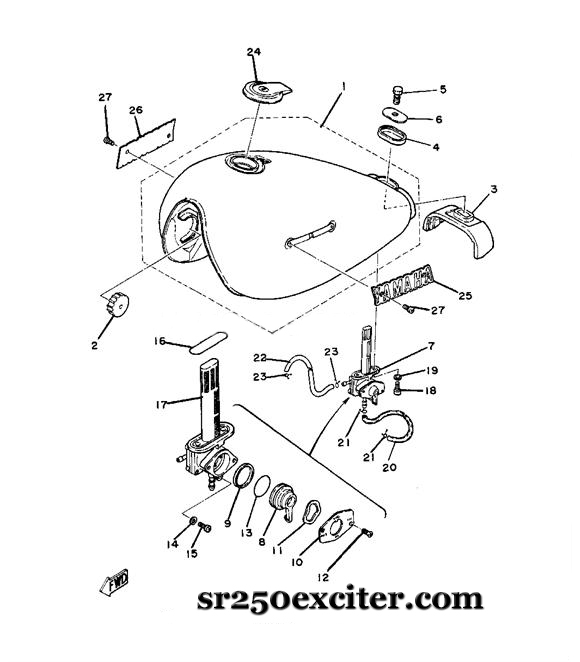

Fuel Tank
| Fuel Tank |
| Tag # |
Description |
Yamaha Part # |
Qty Required |
Notes |
| Fuel Tank |
| 1 |
Fuel Tank, Complete |
3Y6-24110-00-4H |
1 |
U.R. Cardinal Red |
| 2 |
Damper, Locating 1 |
278-24181-00-00 |
1 |
|
| 3 |
Damper, Locating 2 |
3Y6-24182-01-00 |
1 |
|
| 4 |
Damper, Locating 3 |
3Y6-24183-00-00 |
1 |
|
| 5 |
Bolt |
97302-08016-00 |
1 |
|
| 6 |
Washer, Special |
3Y6-24186-00-00 |
1 |
|
| 7 |
Fuel Cock Assembly |
3Y6-24500-00-00 |
1 |
|
| 8 |
Lever, Cock |
3Y6-24524-00-00 |
1 |
|
| 9 |
Valve |
3H3-24523-00-00 |
1 |
|
| 10 |
Plate, Lever Fitting |
3Y6-24525-00-00 |
1 |
|
| 11 |
Washer, Wave |
3H3-24518-00-00 |
1 |
|
| 12 |
Screw, Pan Head |
98501-03008-00 |
2 |
|
| 13 |
O-ring |
3H3-24534-00-00 |
1 |
|
| 14 |
Gasket |
3H3-24522-00-00 |
1 |
|
| 15 |
Screw, Pan Head |
98501-05010-00 |
1 |
|
| 16 |
O-ring |
2W6-24512-00-00 |
1 |
|
| 17 |
Filter, Fuel Cock |
3H3-24514-00-00 |
1 |
|
| 18 |
Screw |
90149-06011-00 |
2 |
|
| 19 |
Washer, Plate |
90202-06010-00 |
2 |
|
| 20 |
Pipe, Fuel 1 |
3Y6-24311-00-00 |
1 |
|
| 21 |
Clip |
90467-10008-00 |
2 |
|
| 22 |
Hose |
90445-09499-00 |
1 |
|
| 23 |
Clip |
90467-08003-00 |
2 |
|
| 24 |
Cap Assembly |
4X7-24602-00-00 |
1 |
4H7-24602-00 |
| 25 |
Emblem 1 |
3Y6-24161-00-00 |
1 |
|
| 26 |
Emblem 2 |
3Y6-24162-00-00 |
1 |
|
| 27 |
Screw, Countersunk |
90152-04006-00 |
4 |
|
