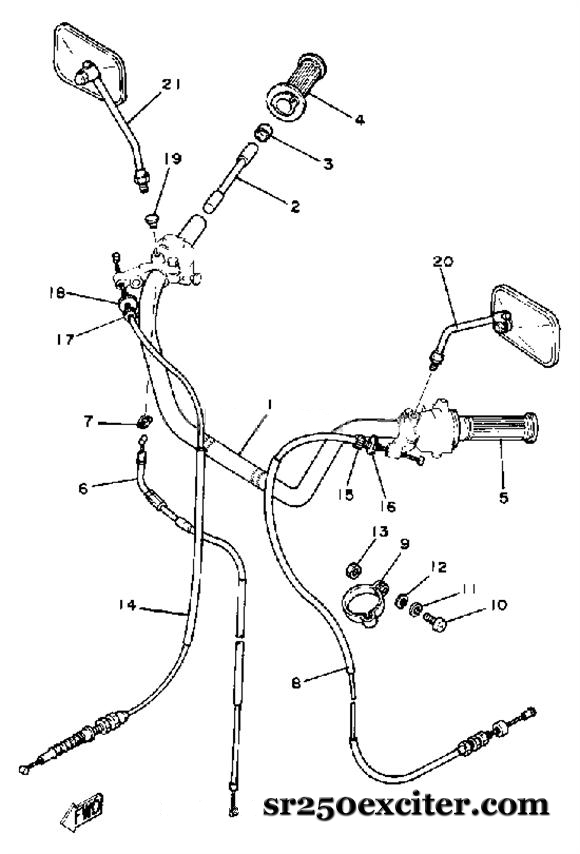

Handlebar - Cables
| Handlebar - Cables |
| Tag # |
Description |
Yamaha Part # |
Qty Required |
Notes |
| Handlebar - Cables |
| 1 |
Handlebar |
3Y6-26111-00-00 |
1 |
|
| 2 |
Bar, Handle |
3Y6-26112-00-00 |
1 |
(throttle) |
| 3 |
Plug |
90338-18014-00 |
2 |
|
| 4 |
Grip Assembly, Right |
2H7-26240-00-00 |
1 |
|
| 5 |
Grip, Left |
2H7-26241-00-00 |
1 |
|
| 6 |
Cable, Throttle |
3Y6-26311-00-00 |
1 |
|
| 7 |
Holder |
584-26393-02-00 |
1 |
|
| 8 |
Cable, Clutch |
3Y0-26335-00-00 |
1 |
|
| 9 |
Band |
3Y6-26397-00-00 |
1 |
|
| 10 |
Screw, Panhead |
98580-05016-00 |
1 |
|
| 11 |
Washer, Spring |
92990-05100-00 |
1 |
|
| 12 |
Washer, Plate |
92901-05600-00 |
1 |
|
| 13 |
Nut |
95380-05600-00 |
1 |
|
| 14 |
Cable, Brake |
3Y6-26341-00-00 |
1 |
|
| 15 |
Bolt |
90123-08046-00 |
1 |
|
| 16 |
Nut |
90179-08148-00 |
1 |
|
| 17 |
Bolt |
90123-08046-00 |
1 |
|
| 18 |
Nut |
90179-08148-00 |
1 |
|
| 19 |
Plug |
90338-09012-00 |
1 |
|
| 20 |
Mirror Assembly, Left |
3Y6-26290-10-00 |
1 |
|
| 21 |
Mirror Assembly, Right |
3Y6-26290-00-00 |
1 |
|
