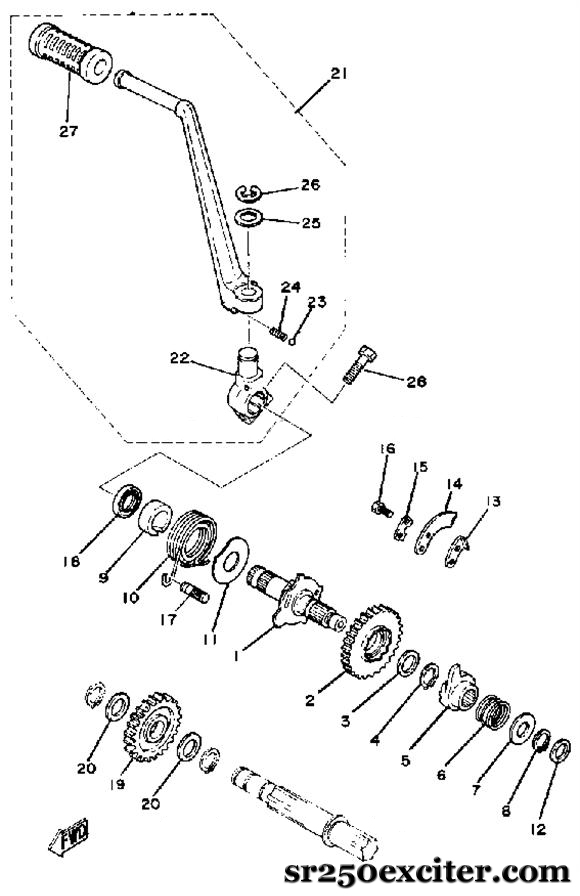

Kick Starter
| Kick Starter |
| Tag # |
Description |
Yamaha Part # |
Qty Required |
Notes |
| Kick Starter |
| 1 |
Kick Axle Assembly |
3Y1-15660-00-00 |
1 |
|
| 2 |
Gear, Kick |
30X-15641-01-00 |
1 |
|
| 3 |
Washer, Plate |
90201-20685-00 |
1 |
T = 0.5 |
| 4 |
Circlip |
93410-20038-00 |
1 |
|
| 5 |
Wheel, Ratchet |
3Y1-15671-00-00 |
1 |
|
| 6 |
Spring, Compression |
90501-16107-00 |
1 |
|
| 7 |
Washer, Plate |
90201-155K6-00 |
1 |
|
| 8 |
Circlip |
99009-15400-00 |
1 |
|
| 9 |
Guide, Spring |
3Y6-15664-00-00 |
1 |
|
| 10 |
Spring Torsion |
90508-32432-00 |
1 |
|
| 11 |
Cover, Spring |
278-15676-00-00 |
1 |
|
| 12 |
Washer, Plate |
90201-15701-00 |
1 |
T = 1.0 |
| 13 |
Stopper |
2NX-15668-00-00 |
1 |
|
| 14 |
Guide, Ratchet Wheel |
3Y6-15674-00-00 |
1 |
|
| 15 |
Washer, Lock |
214-15686-00-00 |
1 |
|
| 16 |
Bolt |
97011-06016-00 |
2 |
|
| 17 |
Stopper |
248-15668-00-00 |
1 |
|
| 18 |
Oil Seal |
93102-20108-00 |
1 |
|
| 19 |
Gear, Kick Idle |
3Y1-15651-00-00 |
1 |
|
| 20 |
Washer, Plate |
90201-20276-00 |
2 |
T = 1.0 |
| 21 |
Kick Crank Assembly |
2L1-15620-00-00 |
1 |
|
| 22 |
Boss, Kick Crank |
583-15621-00-00 |
1 |
|
| 23 |
Ball |
93507-32031-00 |
1 |
|
| 24 |
Spring, Compression |
90501-12081-00 |
1 |
|
| 25 |
Washer, Plate |
90201-15340-00 |
1 |
|
| 26 |
Circlip |
99006-10600-00 |
1 |
|
| 27 |
Cover, Kick Lever |
156-15618-01-00 |
1 |
|
| 28 |
Bolt, Hexagon |
97313-08030-00 |
1 |
|
