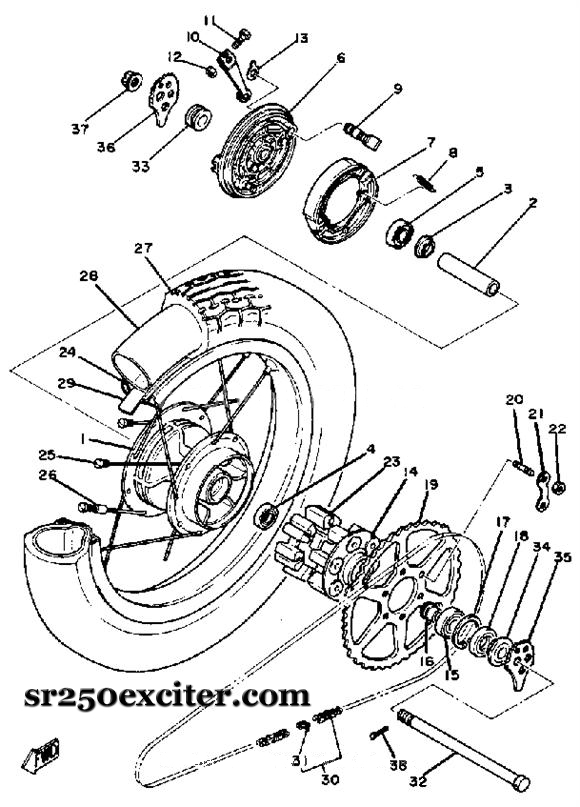

Rear Wheel
| Rear Wheel | ||||
|---|---|---|---|---|
| Tag # | Description | Yamaha Part # | Qty Required | Notes |
| Rear Wheel | ||||
| 1 | Hub, Rear | 3Y6-25311-00-38 | 1 | |
| 2 | Spacer | 90560-17311-00 | 1 | |
| 3 | Flange, Spacer | 146-25315-00-00 | 1 | |
| 4 | Bearing | 93306-20310-00 | 1 | |
| 5 | Bearing | 93306-20310-00 | 1 | |
| 6 | Plate, Brake Shoe | 3Y6-25321-00-38 | 1 | |
| 7 | Brake Shoe Set | 25G-W2536-01-00 | 1 | |
| 8 | Spring, Tension | 90506-17328-00 | 2 | |
| 9 | Camshaft | 3Y6-25351-00-00 | 1 | |
| 10 | Lever, Camshaft | 1E2-25155-00-00 | 1 | |
| 11 | Bolt | 90101-06278-00 | 1 | |
| 12 | Nut, Hexagon | 95380-06600-00 | 1 | |
| 13 | Plate, Indicator | 3Y6-2533A-01-00 | 1 | |
| 14 | Clutch, Hub | 3Y1-25366-00-98 | 1 | |
| 15 | Bearing | 93306-20421-00 | 1 | |
| 16 | Collar, Wheel | 3Y1-25377-00-00 | 1 | |
| 17 | Circlip | 99009-47500-00 | 1 | |
| 18 | Oil Seal | 93102-28022-00 | 1 | |
| 19 | Sprocket, Driven | 3Y1-25446-10-00 | 1 | 46T |
| 20 | Bolt, Stud | 90116-08218-00 | 6 | |
| 21 | Washer, Lock | 90215-08160-00 | 3 | |
| 22 | Nut | 90170-08258-00 | 6 | |
| 23 | Damper | 3Y1-25364-00-00 | 6 | |
| 24 | Rim, Rear | 94421-16259-00 | 1 | 1.60-16 |
| 25 | Spoke Set, Rear | 3Y6-25304-00-00 | 1 | |
| 26 | Balancer, Wheel | 156-25398-00-00 | 1 | |
| 27 | Tire, Rear | 94112-16430-00 | 1 | 120/90-16 Y955 Yokohama |
| 28 | Tube, Rear | 94212-16159-00 | 1 | |
| 29 | Band, Rim | 94330-16058-00 | 1 | 1.60-16 |
| 30 | Chain | 9Y585-20101-00 | 1 | 520DS-103L -or- 520DS-102L |
| 31 | Joint, Chain | 94685-20011-00 | 1 | |
| 32 | Axle, Wheel | 150-25381-00-00 | 1 | |
| 33 | Collar | 90387-17141-00 | 1 | |
| 34 | Collar, Wheel | 3Y1-25383-00-00 | 1 | |
| 35 | Puller, Chain 1 | 3Y1-25388-01-00 | 1 | |
| 36 | Puller, Chain 2 | 3Y1-25389-00-00 | 1 | |
| 37 | Nut, Castle | 90171-16024-00 | 1 | |
| 38 | Pin, Cotter | 91401-30030-00 | 1 | |
