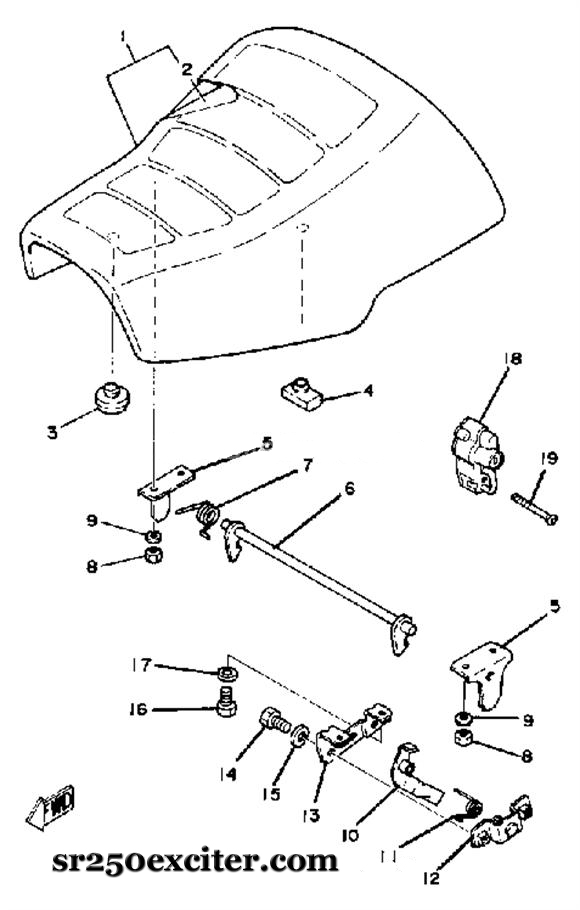

Seat
| Seat |
| Tag # |
Description |
Yamaha Part # |
Qty Required |
Notes |
| Seat |
| 1 |
Single Seat Assembly |
4K9-W2471-00-00 |
1 |
|
| 2 |
Cover, Double Seat |
4K9-24731-00-00 |
1 |
|
| 3 |
Pad, Seat |
1L9-24741-00-00 |
4 |
|
| 4 |
Damper, Seat |
214-24724-00-00 |
2 |
|
| 5 |
Bracket, Seat |
3J3-24738-00-00 |
2 |
|
| 6 |
Hook, Seat |
3Y6-24754-00-00 |
1 |
|
| 7 |
Spring, Torsion |
90508-20412-00 |
1 |
|
| 8 |
Nut, Hexagon |
95380-06600-00 |
4 |
|
| 9 |
Washer, Spring |
92995-06100-00 |
4 |
|
| 10 |
Lever, Seat |
3Y6-24776-00-00 |
1 |
|
| 11 |
Spring, Torsion |
90508-20412-00 |
1 |
|
| 12 |
Bracket, Seat |
3Y6-24718-00-00 |
1 |
|
| 13 |
Bracket, Seat Lever |
3Y6-2475H-00-00 |
1 |
|
| 14 |
Bolt |
97013-06012-00 |
2 |
|
| 15 |
Washer, Spring |
92995-06100-00 |
2 |
|
| 16 |
Bolt |
97013-06012-00 |
2 |
|
| 17 |
Washer, Spring |
92995-06100-00 |
2 |
|
| 18 |
Seat Lock Assembly |
4R2-24705-00-00 |
1 |
|
| 19 |
Screw, Flat Head |
98701-06030-00 |
1 |
|
