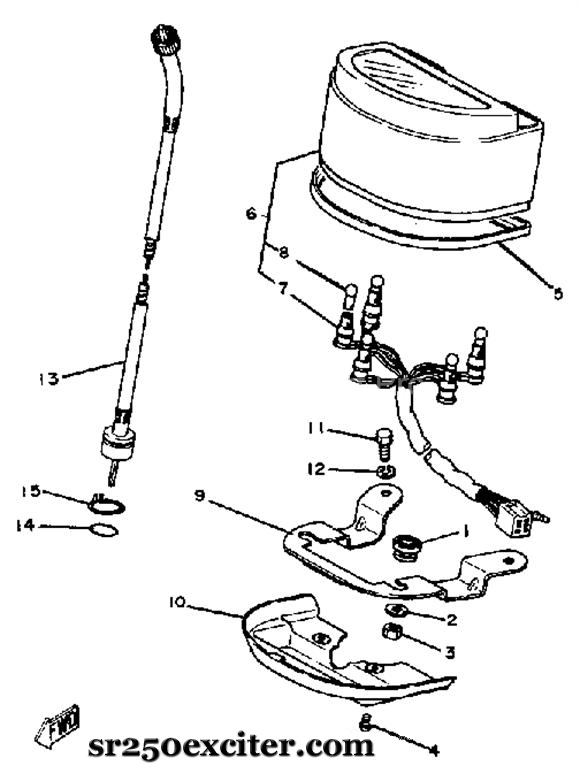

Speedometer
| Speedometer | ||||
|---|---|---|---|---|
| Tag # | Description | Yamaha Part # | Qty Required | Notes |
| Speedometer | ||||
| 1 | Damper | 3Y6-83513-00-00 | 2 | |
| 2 | Washer, Plate | 90201-052E2-00 | 2 | |
| 3 | Nut | 95380-05600-00 | 2 | |
| 4 | Screw, Tapping | 3Y6-83549-00-00 | 2 | |
| 5 | Ring, Speedometer | 3Y6-83512-00-00 | 1 | |
| 6 | Speedometer Assembly | 3Y6-83510-A0-00 | 1 | MPH |
| 7 | Socket Cord Assembly | 3Y6-83509-00-00 | 1 | |
| 8 | Bulb | 123-83516-21-00 | 5 | 12V-3.4W |
| 9 | Bracket, Meter | 3Y6-83519-00-00 | 1 | |
| 10 | Case, Speedometer Lower | 3Y6-83572-00-00 | 1 | |
| 11 | Bolt | 97026-06012-00 | 2 | |
| 12 | Washer, Spring | 92906-06100-00 | 2 | |
| 13 | Speedometer Cable | 3Y6-83550-00-00 | 1 | |
| 14 | O-Ring | 93210-14104-00 | 1 | |
| 15 | Ring, Stop | 102-25137-00-00 | 1 | |
