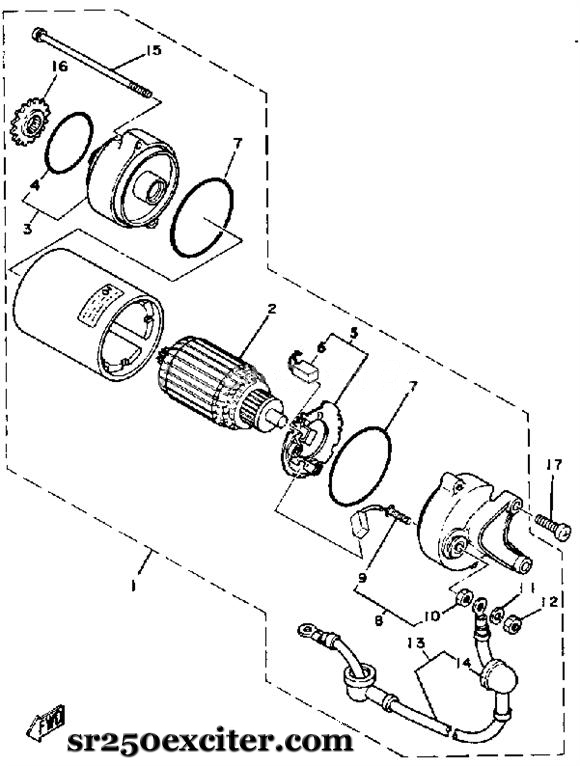

Starter Motor
| Starter Motor | ||||
|---|---|---|---|---|
| Tag # | Description | Yamaha Part # | Qty Required | Notes |
| Starter Motor | ||||
| 1 | Starting Motor Assembly | 3Y6-81800-52-00 | 1 | |
| 2 | Armature Assembly | 4H7-81850-00-00 | 1 | |
| 3 | Front Bracket Assembly | 3Y6-81830-00-00 | 1 | |
| 4 | O-Ring | 4H7-81847-01-00 | 1 | |
| 5 | Brush Holder Assembly | 4H7-81840-01-00 | 1 | |
| 6 | Brush 1 | 4H7-81811-00-00 | 1 | |
| 7 | O-Ring | 4H7-81844-00-00 | 2 | |
| 8 | Rear Bracket Assembly | 3Y6-81820-00-00 | 1 | |
| 9 | Brush 2 | 4H7-81812-01-00 | 1 | |
| 10 | Nut, Special | 4H7-81872-00-00 | 1 | |
| 11 | Washer, Spring | 92995-06100-00 | 1 | |
| 12 | Nut, Hexagon | 95380-06600-00 | 1 | |
| 13 | Wire, Starter | 3Y6-81815-00-00 | 1 | |
| 14 | Cap | 4H7-81871-00-00 | 2 | |
| 15 | Bolt | 4H7-81826-01-00 | 2 | |
| 16 | Gear, Starting Motor | 3Y6-15511-00-00 | 1 | |
| 17 | Screw, Pan Head | 98511-06025-00 | 2 | |
