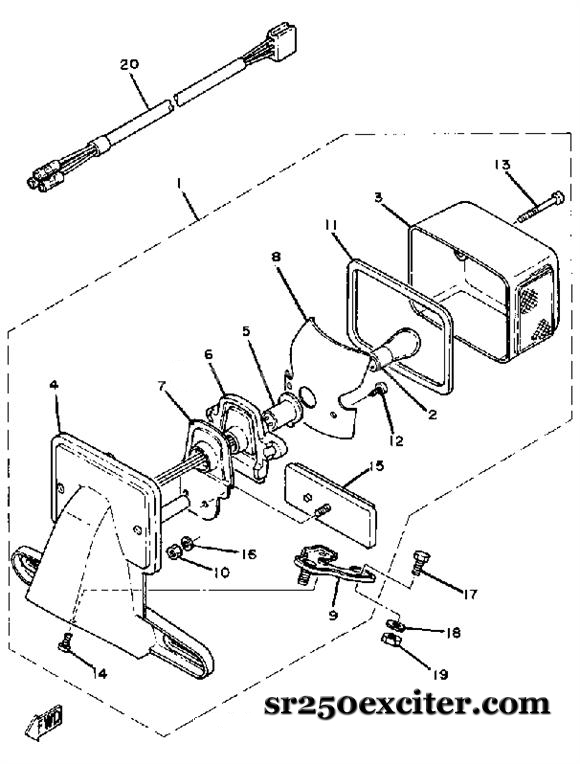

Taillight
| Taillight |
| Tag # |
Description |
Yamaha Part # |
Qty Required |
Notes |
| Taillight |
| 1 |
Taillight Assembly |
3Y6-84700-60-00 |
1 |
|
| 2 |
Bulb |
256-84714-61-00 |
1 |
12V-21/5W |
| 3 |
Lens, Taillight |
1M1-84521-60-00 |
1 |
|
| 4 |
Bracket, License |
3Y6-84751-00-00 |
1 |
|
| 5 |
Socket Cord Assembly |
3Y1-84536-00-00 |
1 |
|
| 6 |
Damper |
3Y1-83527-00-00 |
1 |
|
| 7 |
Holder, Base Seat |
3Y6-84713-00-00 |
1 |
|
| 8 |
Reflector, Taillight |
3Y1-84531-00-00 |
1 |
|
| 9 |
Bolt, Fitting |
3Y6-84752-00-00 |
1 |
|
| 10 |
Nut |
95380-05600-00 |
1 |
|
| 11 |
Gasket, Lens |
3Y1-84545-00-00 |
1 |
|
| 12 |
Screw, Tapping |
97780-40116-00 |
2 |
|
| 13 |
Screw, Lens Fitting |
3Y1-84524-00-00 |
2 |
|
| 14 |
Screw, Bind |
98901-04008-00 |
1 |
|
| 15 |
Rear Reflector Assembly |
3Y6-85130-02-00 |
1 |
|
| 16 |
Washer, Spring |
92990-05100-00 |
1 |
|
| 17 |
Bolt, Hexagon |
97313-06016-00 |
2 |
|
| 18 |
Washer, Spring |
92995-06100-00 |
3 |
|
| 19 |
Nut, Hexagon |
95380-06600-00 |
3 |
|
| 20 |
Cord, Taillight |
3Y6-84717-00-00 |
1 |
|
